Description

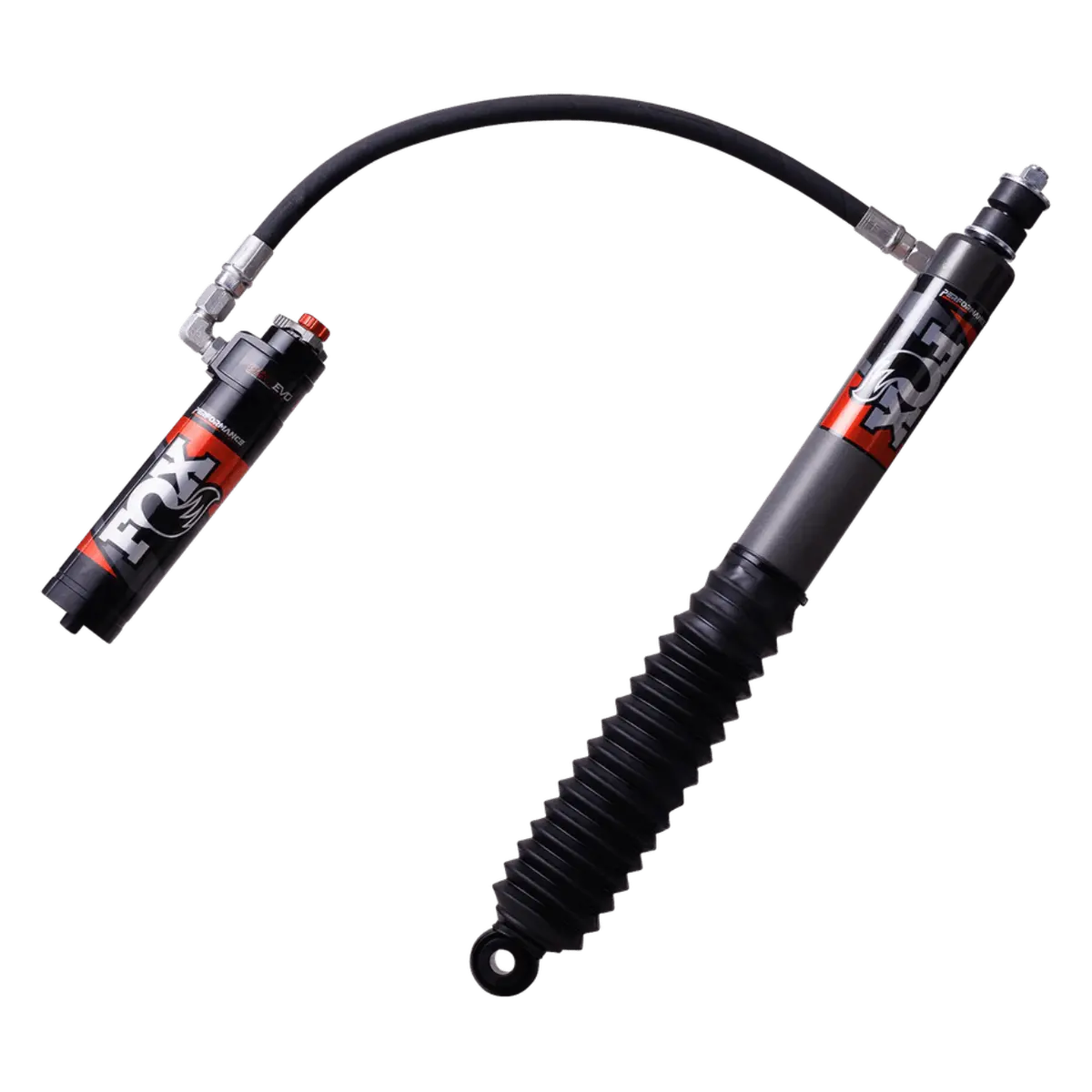

FOX PERFORMANCE SERIES 2.5 Rear Suspension for Toyota Land Cruiser LC300 22+
FOX Performance Elite Series 2.5 improve the LC300 and LX600 chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation. Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock. DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn’t add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity. Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
Suit LC300 22-25 & Lexus LX600 22-25
| PART NUMBER | 883-26-155 |
| FEATURES |
2.5″ impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body 7/8″ hard chromed steel shafts Vehicle-specific tuning maximises performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 9.48 |
| BODY | 2.5″ Impact extruded and CNC machined 6061-T6 hard anodised aluminium body resists rust over time |
| BODY PLATING | Hard-anodised for a durable finish |
| COMPONENTS | Black-anodised, CNC-machined 6061-T6 billet aluminium |
| SHAFT | 7/8″ hard chrome plated steel shafts |
| EXTENDED LENGTH | 25.78 |
| COMPRESSED LENGTH | 16.3 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Heavy Duty version designed for additional payload |
