Modular MIDI Fuse Distribution System

Description

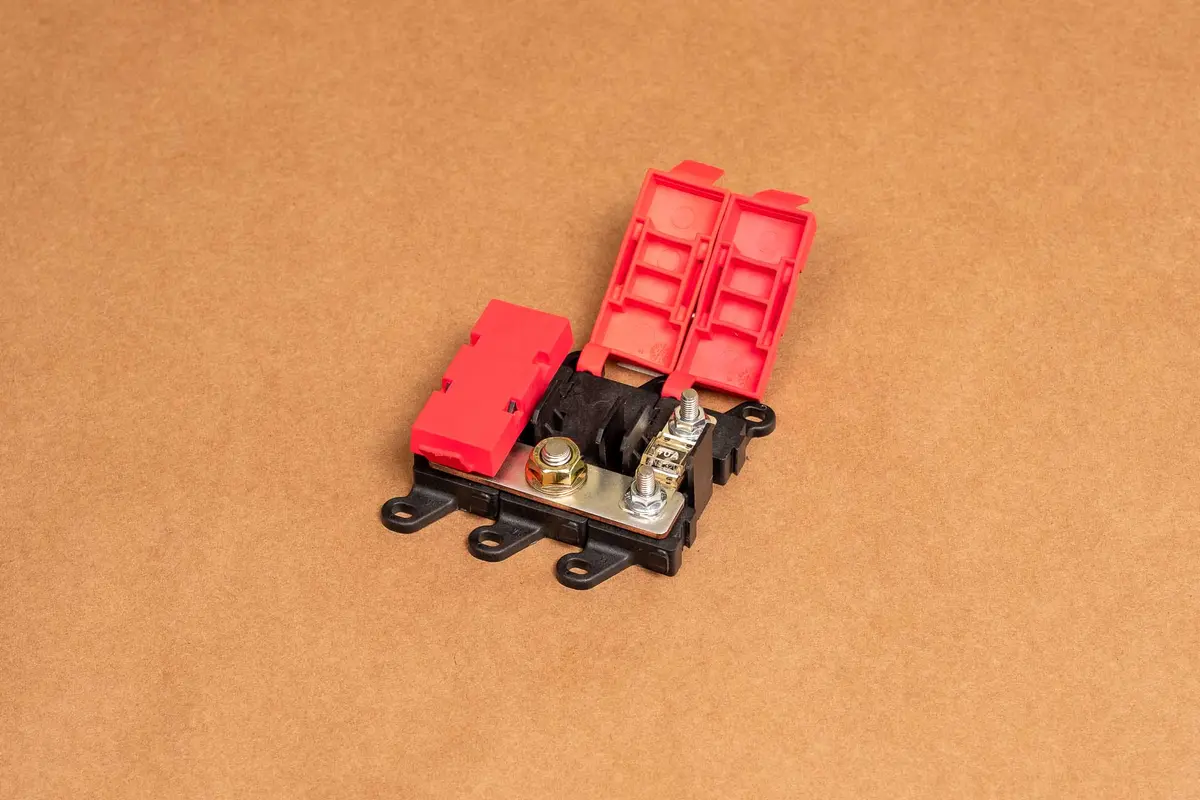

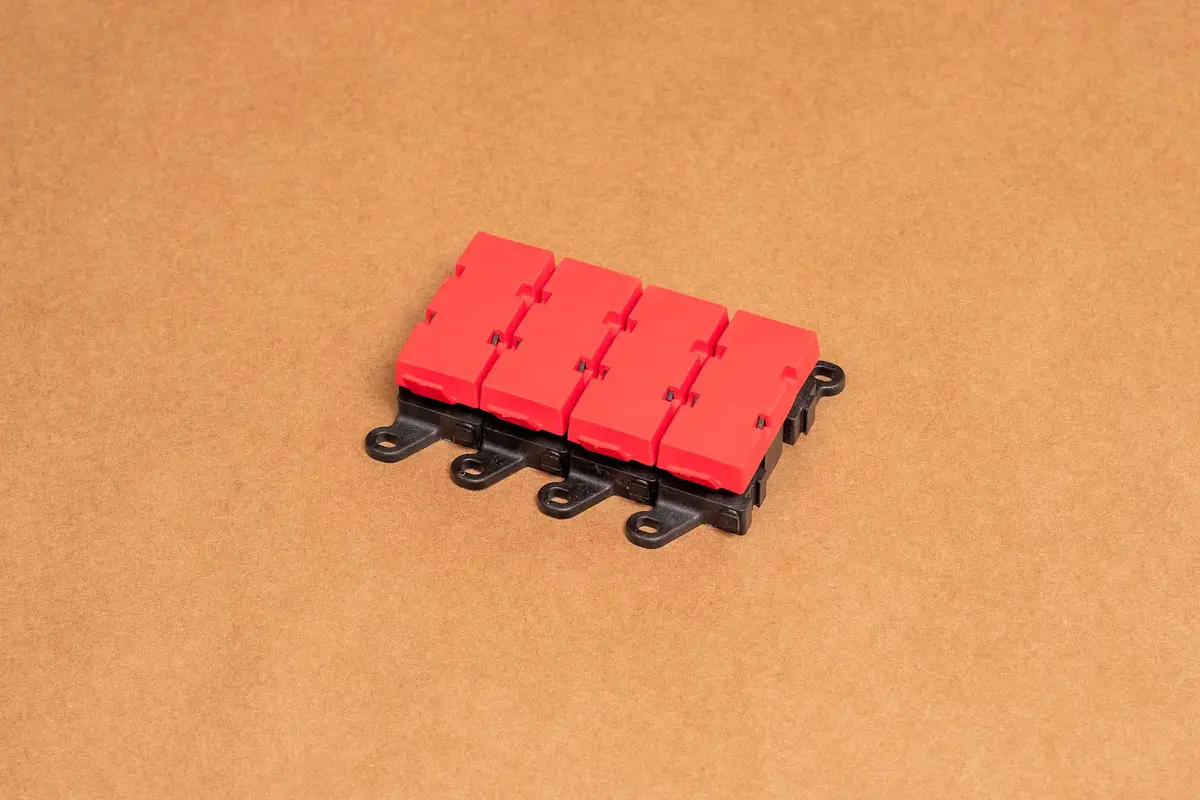

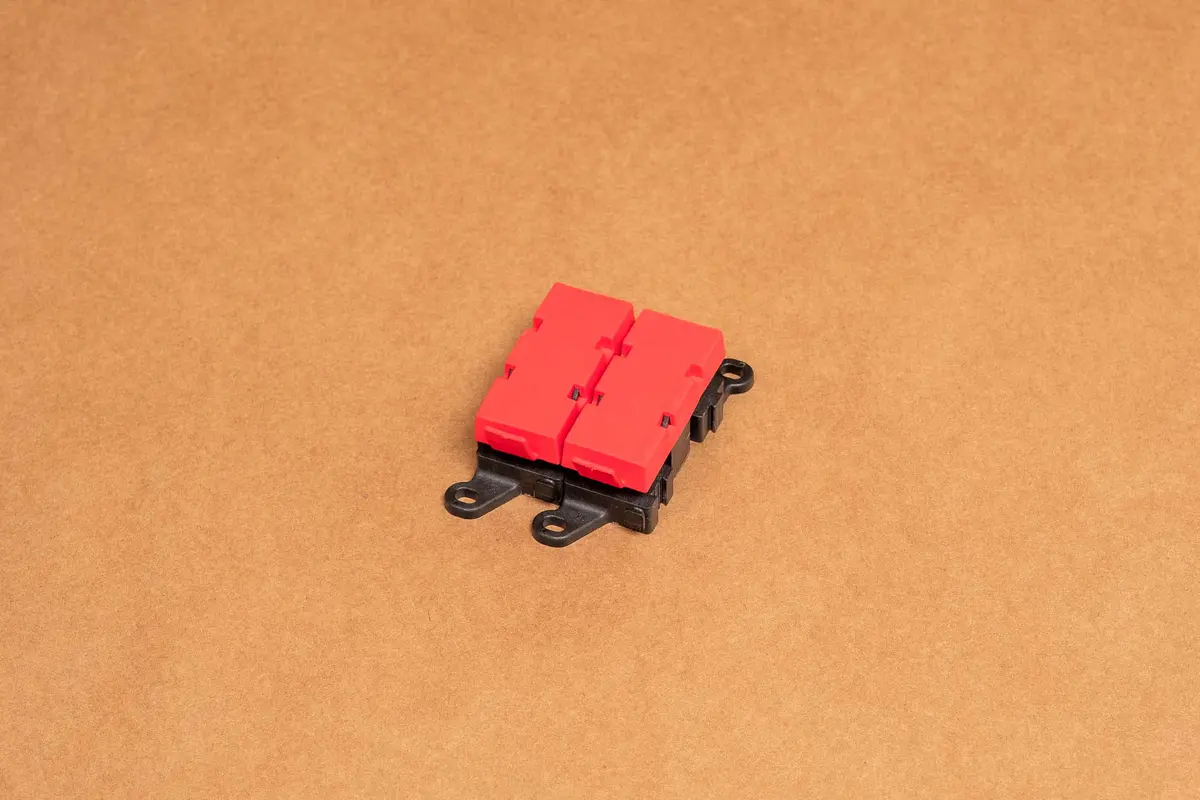

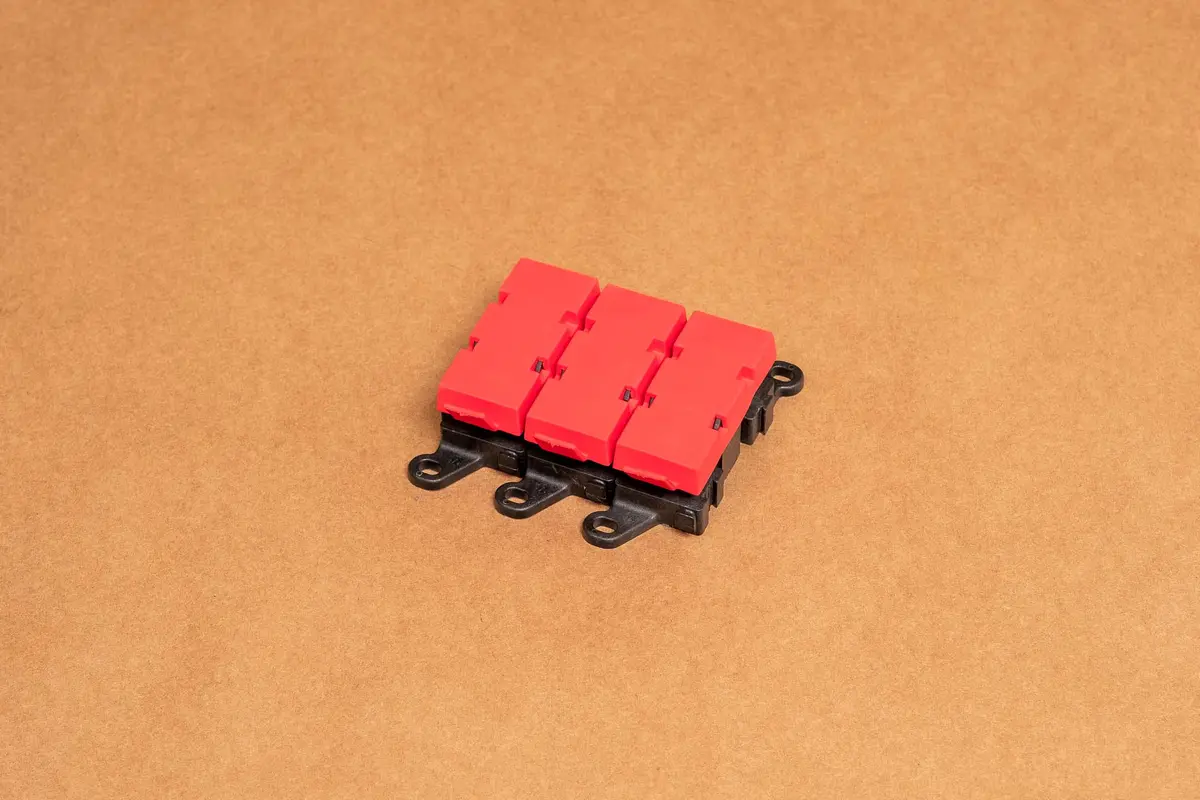

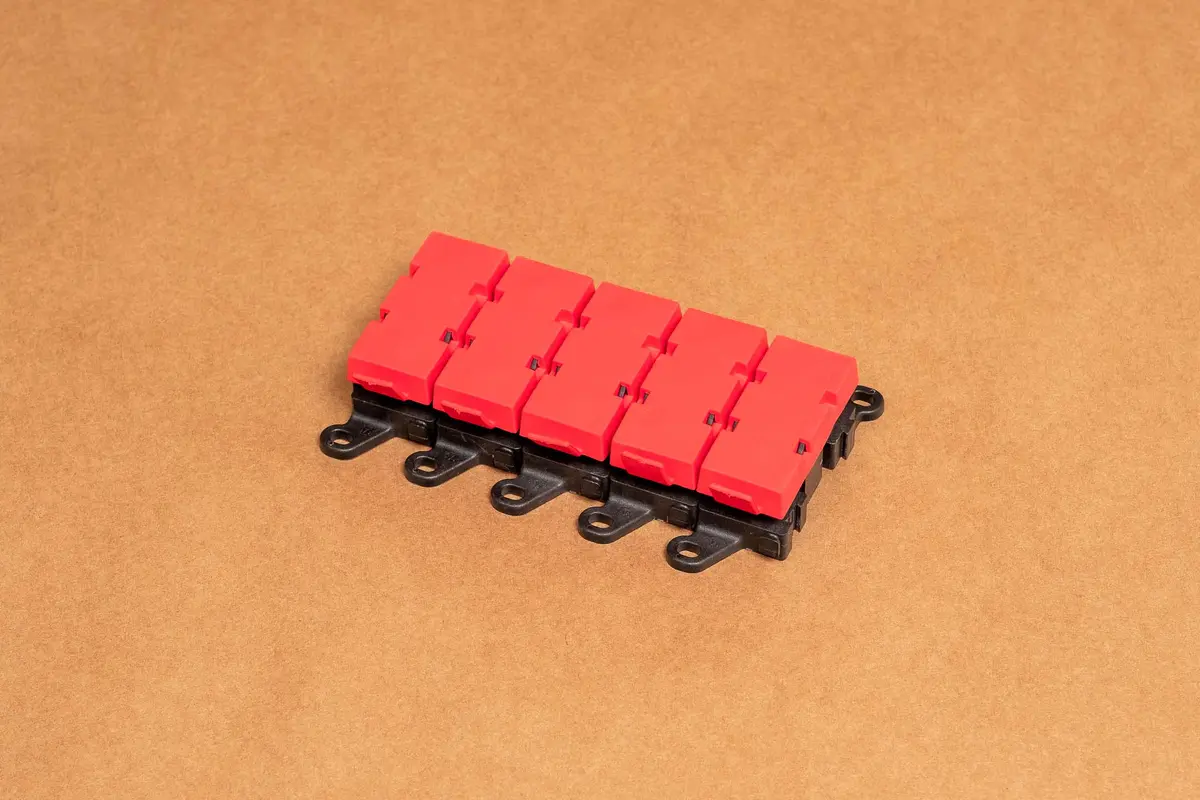

Bussman’s LMI (Configurative AMI fuse holder system) can be used for main branch or primary fusing and accepts multiple (up to 6) industry-standard AMI (MIDI) fuses. Sold as 3 and 4 position assemblies, the LMI uses a common input busbar for assemblies of two or more fuse – MIDI fuses up to 300A. Ideal for medium/heavy gauge cables requiring high current protection.
Product Features:
– Heavy-duty construction
– Stainless steel M6/M8 posts
– Uses standard MIDI/AMI fuses
– Weatherproof protective Santoprene cover + thermoplastic housing
– Interconnecting lugs on side of each fuse block for secure multiple block configurations.

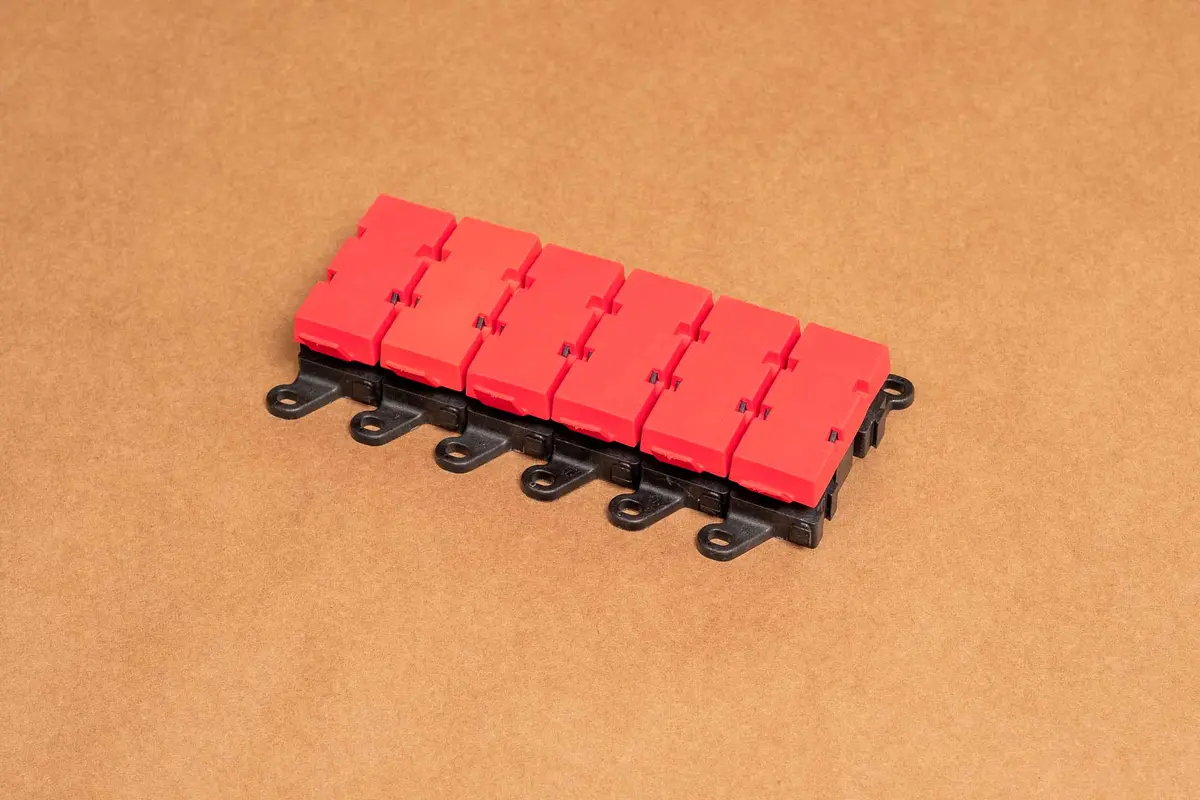

Note: The largest possible LMI assembly that can be created is 7 modules total; 6 fuse modules and one input module, with a maximum total combined rating of 400A continuous.
What’s included:

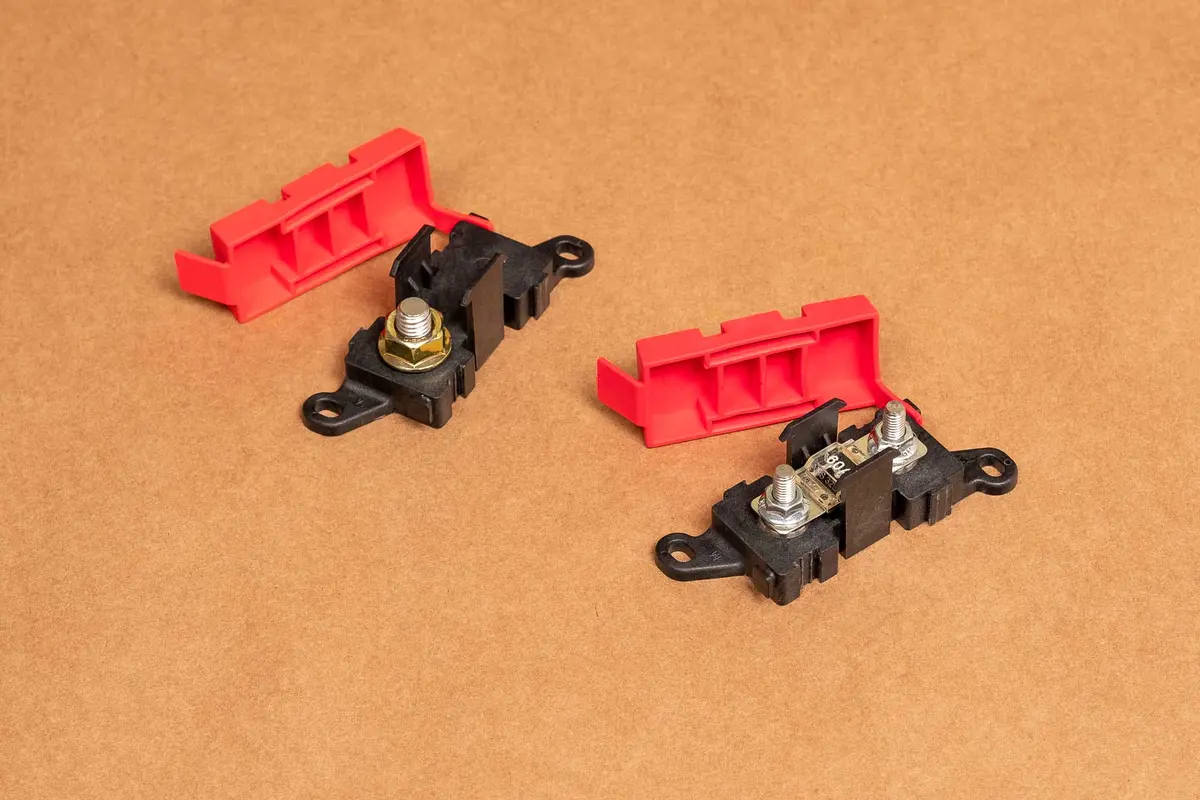

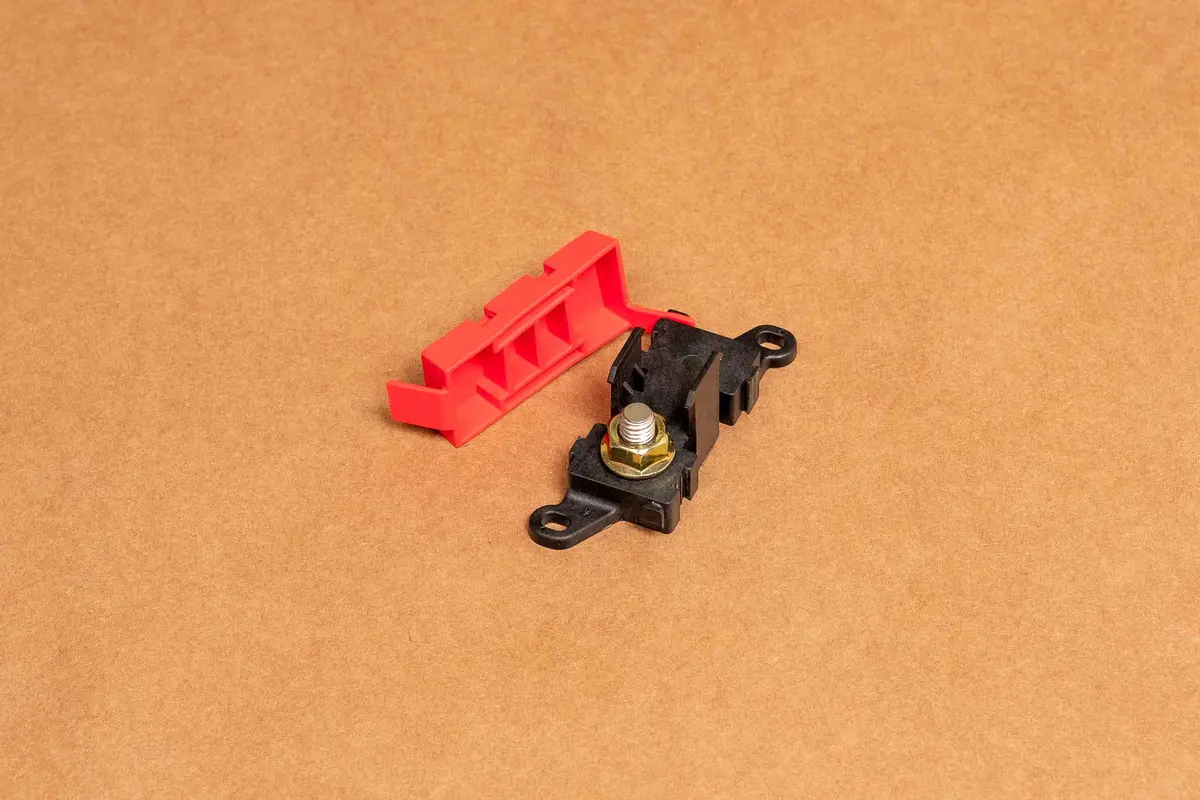

– 1x Input module – part no. LMIIM)

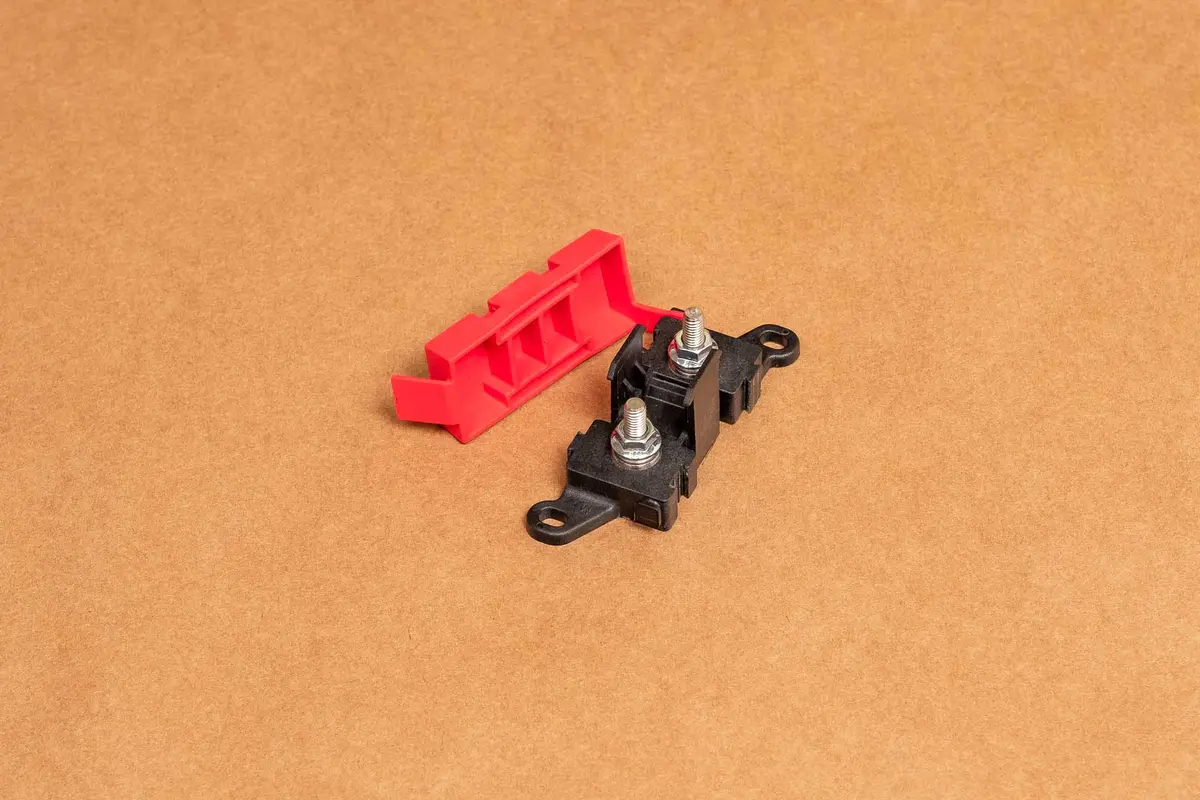

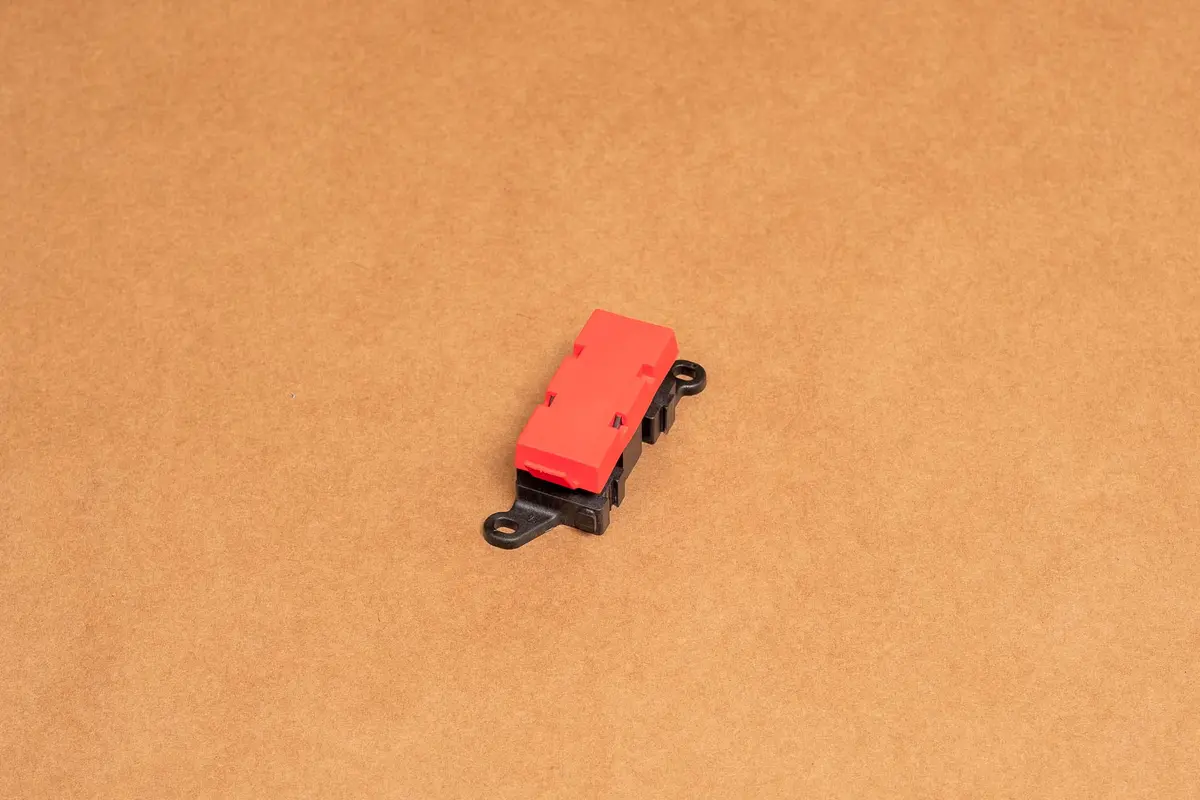

– MIDI fuse modules – part no. LMIFM
– 1x 2, 3, 4 or 5 position busbar
– Bonus SS hardware kit
***Fuses not included***
