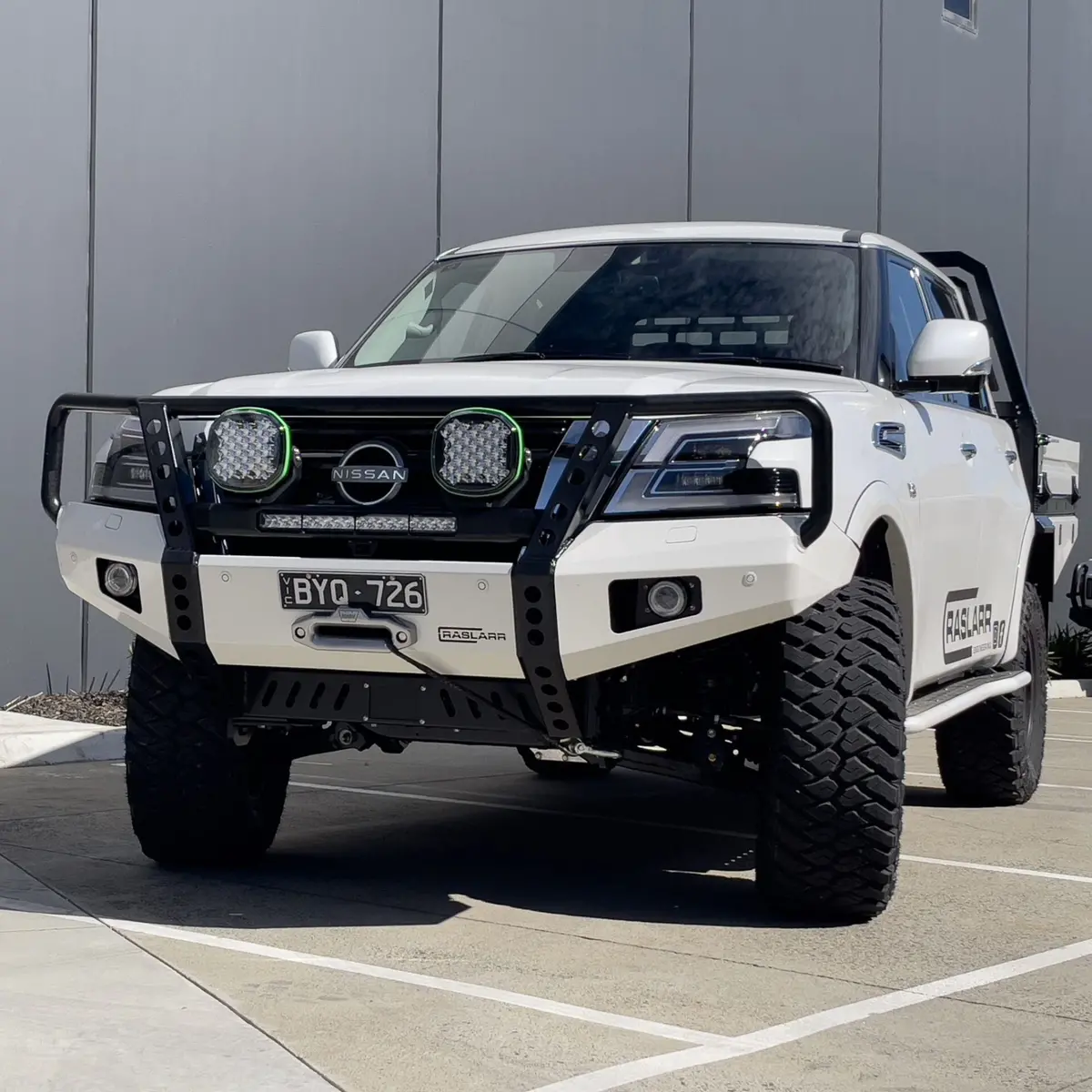

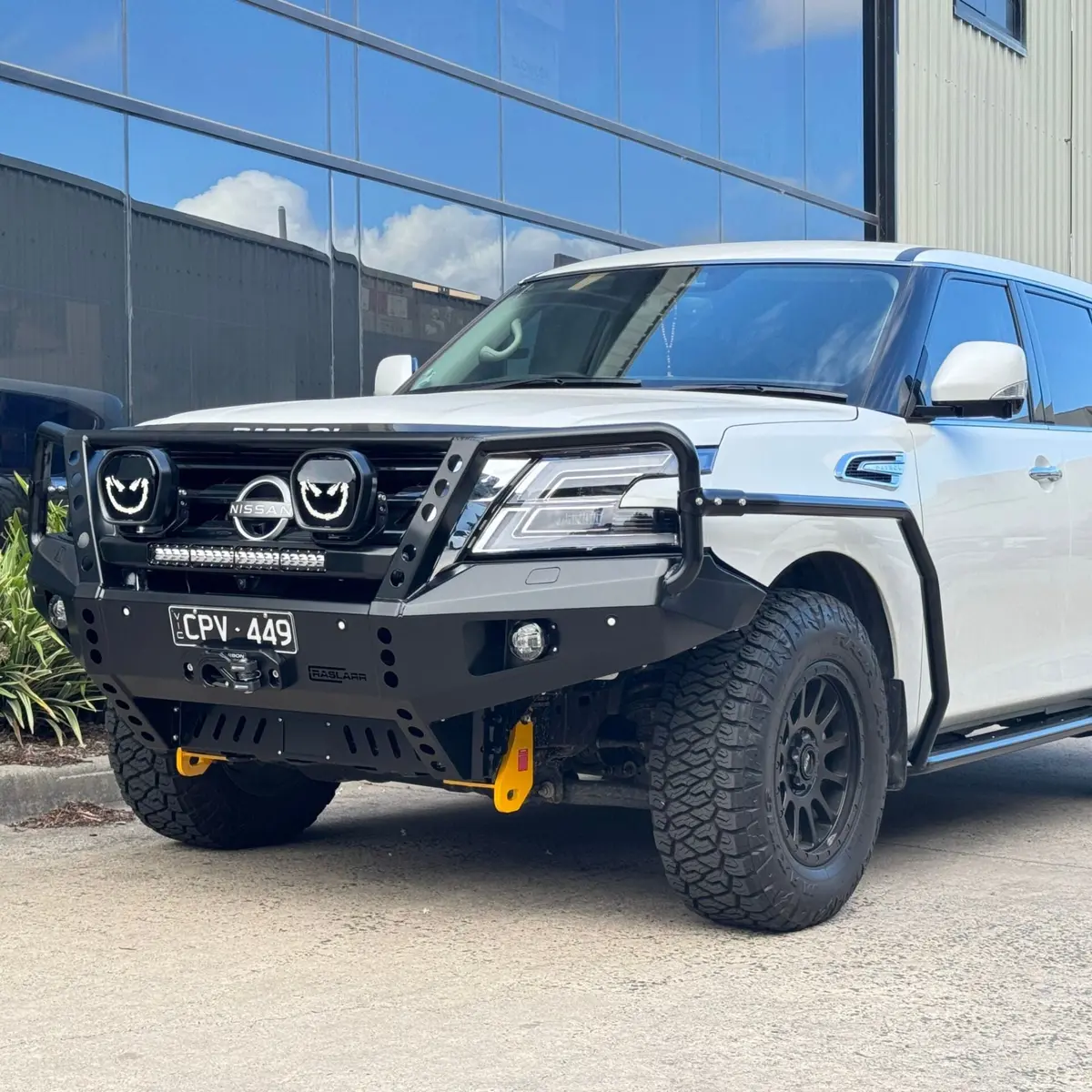

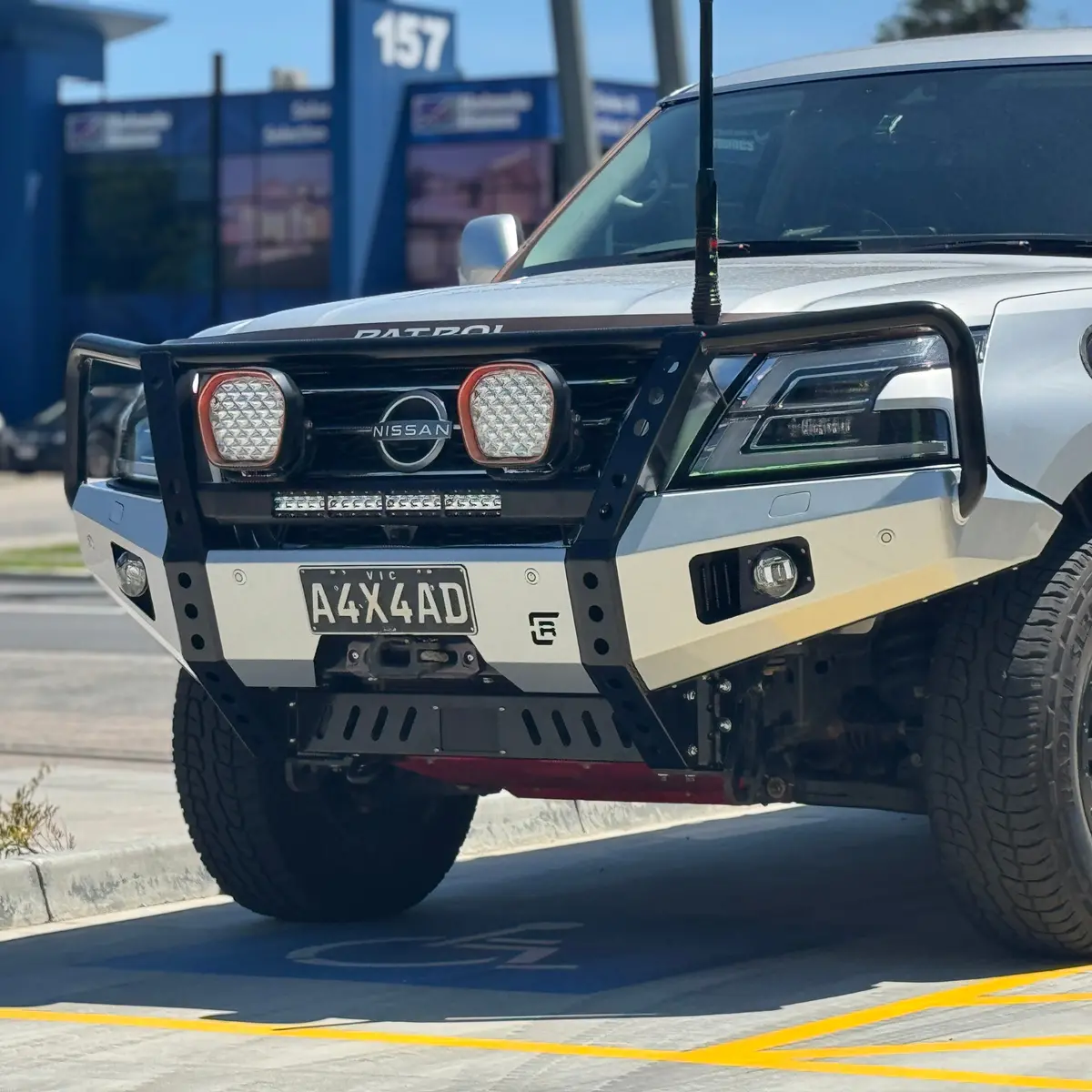

Nissan Patrol Y62 S5 Hooped Dallas-Style Bull Bar

Description

Made to Order Product

Current Manufacturing Lead Time: JUNE 2026

Expected Completion: Late July 2026

 If you need more information or have specific time requirements, feel free to contact us



PRODUCTION DESCRIPTION

Suits Series 5, all models; Ti, Ti-L & Warriors

• Warriors will require trimming of the bash plates, flares clip off.
• These will not fit S1-4 Models, these are still in the design process.

• These are a 1-piece design compared to our low line variant (Winter Bull Bar), which are 3-pieces
• ADR Compliant
• Light bar section is bolt-on with the ability to remove if not running or to run our 3 & 4 heavy duty light options (5mm)
• Comes with Raslarr soft shackle Recovery points (as of May 2024)
• Capable of carrying low mount winches with a straight fairlead (not offset fairlead).
• Only fit slimline numbers plates, standard ones can be run with a flip up number plate bracket (not Raslarr)
• Plastic radar cover.
• Optional Stedi 21.5″ light bar & fog lights.
  • Factory fog lights will not fit back into the bull bar.
• Will fit any Stedi round driving lights (and most other brands).
• 2 aerial tabs.
• 50mm OD Tube for the headlight hoops, with 3.2mm wall thickness.
• The main section is constructed from a combination of 6mm and 3mm mild steel.
• The wings are constructed from 3mm mild steel.
• Sensors and washer jets work with new bull bar fitted.
• Comes standard sandblasted, zinc primed & satin black powder coated
• Comes with all new hardware to mount your product.

Stedi fog lights & light bar optional

If you require Stedi fog lights and a light bar on your bull bar, please add a comment in the order notes section at checkout. Please note: this will incur an additional charge. We will contact you once the order has been placed.

• Fog lights(+ $160.00 AUD)
• Light bar(+ $219.00 AUD)

WEIGHT OF PRODUCT: (Doesn’t include fogs or light bar)

• Complete bar: 64kgs
• Light bar bracket: 4kgs
  (standard version, not heavy duty)
• Recovery Points: 10kgs
• Total Weight of product (with recovery points): 78kgs
• Removal of misc parts when fitting: 23kgs
  Total weight added to vehicle: 55kgs

Contact Us for Colour Coding Quote:

The Raslarr bull bar comes standard with a sandblasted finish, zinc priming, and is powder coated in satin black.

We also offer colour matching for the bar work to suit your vehicle. To ensure a perfect match, please provide the exact colour code (e.g., KAD, QAC, etc.)

We Can Fit Your Bull Bar:

Our team is fully equipped to professionally fit your bull bar. Contact us to schedule an installation.
