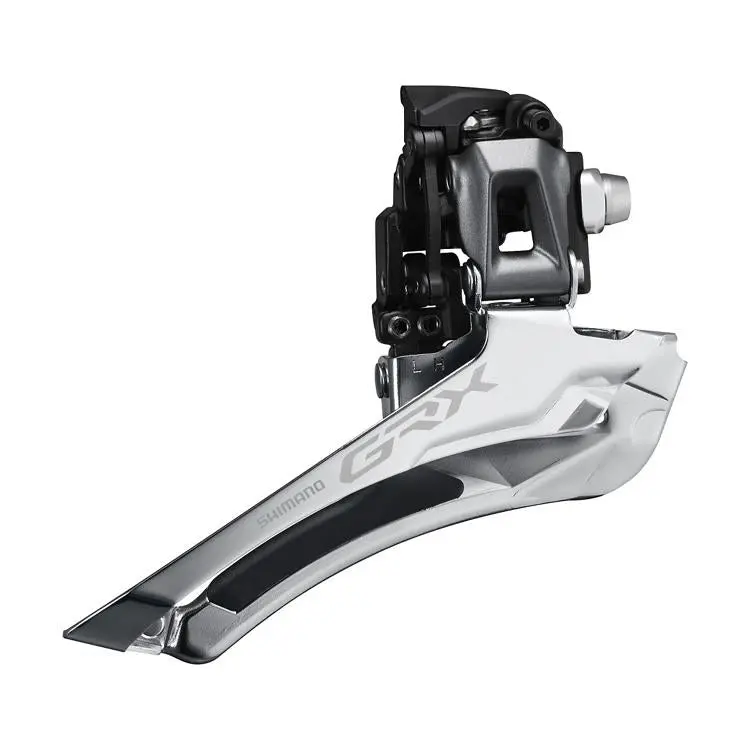

Shimano GRX RX815 Di2 Front Derailleur – 2×11-Speed Electronic

Description

SHIMANO GRX – DI2 – Front Derailleur – Gravel – 2×11-speed

The SHIMANO GRX RX815 DI2 front derailleur delivers quick and smooth front shifting even under high pedaling torque. It’s designed for a wider, 17T front range and it has programmed chain guide trim settings and can be used in full or semi SHIMANO SYNCHRONIZED SHIFT modes.

FEATURES

• Wider tire clearance
  • Chainline +2.5 mm vs. conventional road FD
• Wider range front gearing
  • 17T front range

PRODUCT SPECIFICATIONS
MODEL NO    FD-RX815-F
SERIES    GRX DI2
Color    Series color
Average weight    135
Front speeds    2
Rear speeds    11
Compatible chain    LINKGLIDE, HG 11-speed
Action|Down swing    ✔
Mount|Brazed-on    ✔
Chain line (mm)    47
Chainstay angle (deg.)    61-66
Top gear teeth    46-48T
Total capacity    17T
Link bushings    2
Firmware update by E-TUBE PROJECT    ✔
SD50 port (pcs)    1
SD300 port (pcs)    0
SD50 connector (pcs)    0
SD300 connector (pcs)    0
